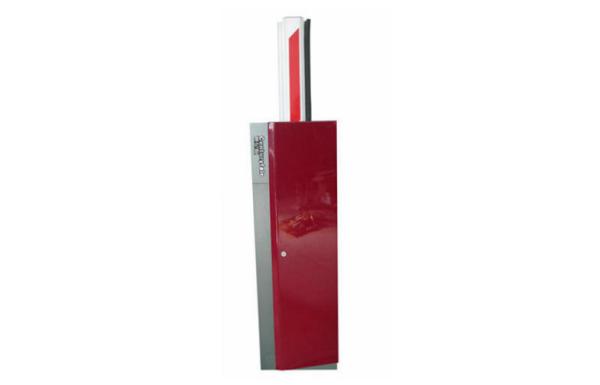

High Class Car Painting Security Parking Automatic Barrier Gate Outdoor
Quick details:
1. Able to work with infrared photocells or vehicle detector, preventing vehicle from damaging
2.Working mode:Remote control,push button and manual switch
3.Opening/closing time:3s or 6s
4. equiped with high-sensibility magnet sensing limit control system
5.Working environment:Indoor or outdoor
6.Error action:<=0.01%
Description:
SJSPD02-L employs magnet sensing limit control system with high sensibility ,reliable
and accurate.It is made of 2.5mm cold rolled plate, single phase asynchronous motor,
high grade car painting,with simple but effective structure to reduce mechanical failure.
The machine Is widely applicated in bus station,living area,park,school,hospital,ect.
Applications:
School
Hospital
Army
Living area
Government.,etc
Specifications:
Supply Voltage | AC220v+/-10% or AC110V |
Power Frequency | 50/60Hz |
Rated Power | 60W |
Rated Speed | 1500r/min |
Rated Torque | 35N. m |
Standard Lever Length | <=6m |
Noise | <=60dB |
Rising/Falling Time | 3s or 6s |
Service Life | More than 3.5 million times |
Error Action | <=0.01% |
Working mode | Remote control, push button and manual handle |
Working temperature | -25℃-60℃, relative humidity <95%, without dew |
Working environment | Indoor or outdoor |
Weight | 65 kgs |
Competitive Advantages:
1. use simple driving actuating mechanism to reduce mechanical failer and maintenance free
2. equiped with high-sensibility magnet sensing limit control system
3. able to work with infrared photocells or vehicle detector, preventing vehicle from damaging
4. Special balance device to keep the lever opening vertically and closing horizontally.
5. convenient to control by remote control, manual switch, also open by handle when power off
6. the lever is made of high strength aluminum alloy covered with shining film, good performance in prompting .
7. adopt thermal protection functions to turn off motor automatically when temperature is higher
than 135℃
8. high grade car painting
9. able to work with straight/articulated/ fence/telescopic lever
Additional Information:
Package: export standard wood carton
Delivery date: 7-10 days after payment confirmed
Payment terms: 50% T/T in advance, the balance 50% paid before shipment
Approval: CE, CCC
Factory support : ISO 9001: 2008
OEM/ ODM service acceptable
